TRAILERS

A respected OEM source for custom designed and built trailers

The premier reputation United Alloy has established as a leading manufacturer of serial-production fuel tanks applies with equal integrity to the trailers we build. Decades of design and manufacturing expertise serving the OEM portable power, construction and industrial equipment manufacturers makes United Alloy uniquely capable of integrating application specific trailers with tanks, frames and other fabricated structural support requirements to create completely integrated high value solutions. Purpose built trailer designs for serial production volumes from 5 to 100 or more per month.

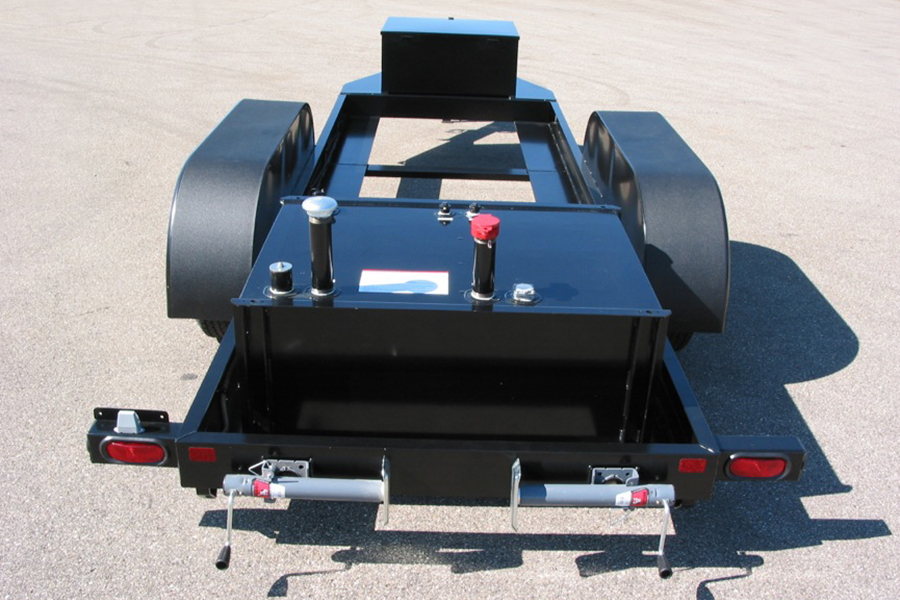

Trailer/Tank –Combos

Integrated (UL/CUL and UN31) sub-base tanks
– pressure rated to 25 psi

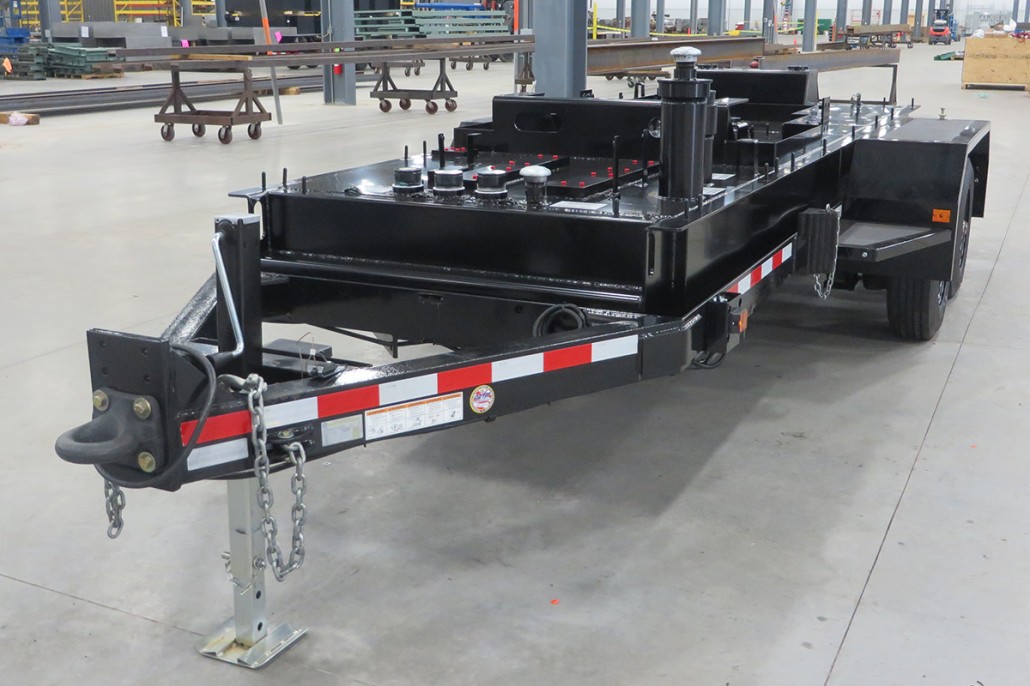

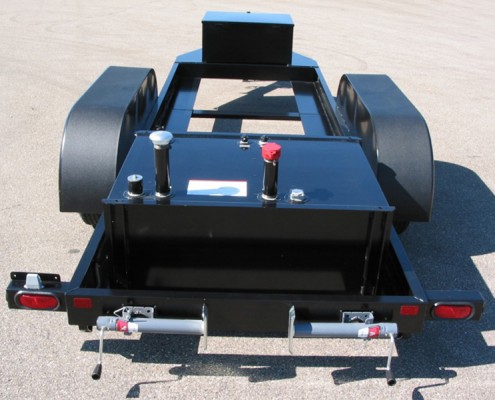

Base Tank Style
Direct mounting of the generator sub-base tank to the base of the trailer, within the confines of c-channel frame. Gen-Set mounts directly to the sub-base tank.

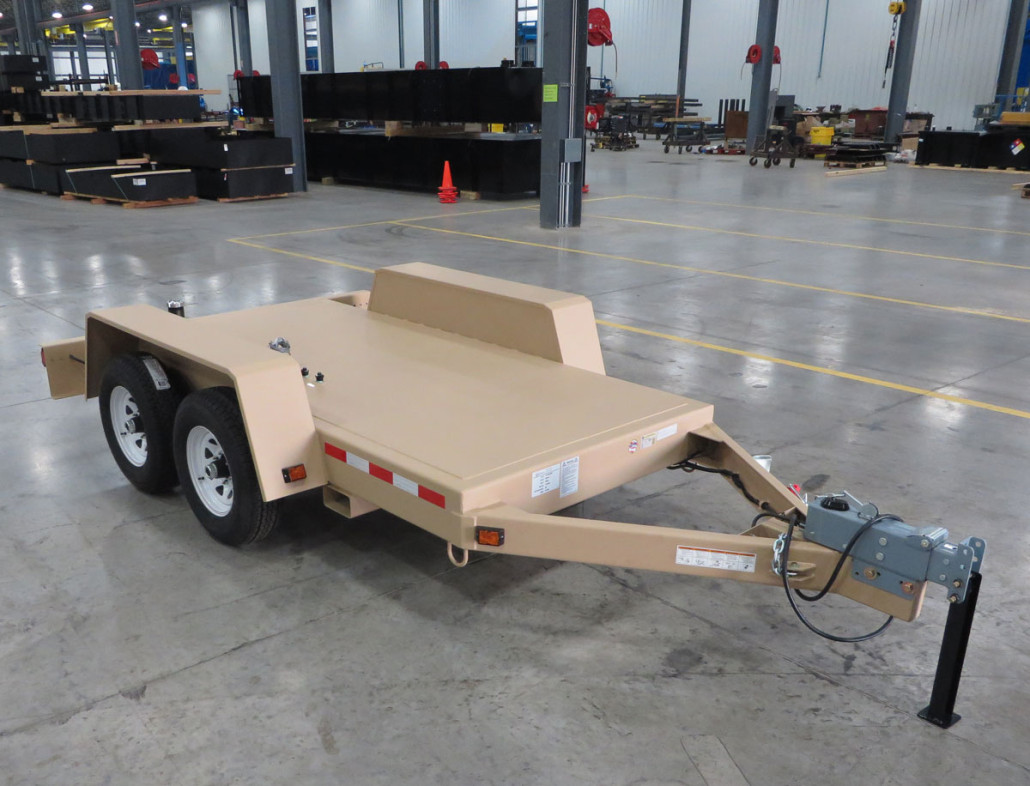

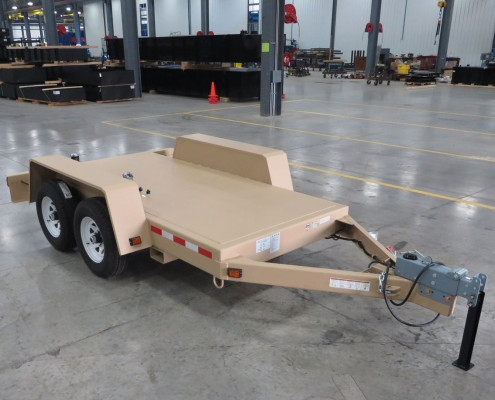

Flat Bed Style
direct mounting of generator sub-base tank to top plate of trailer. Gen-Set rides higher than sub-base tank style.
Slim Line Style
Direct mounting of generator to c-channel frame. Sub-base fuel tank is integral to trailer frame.

Additional Options:

Sub-base designs with built in containment pans
Open or closed top dike variants

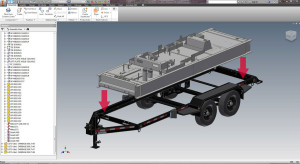

CAD designs & modeling

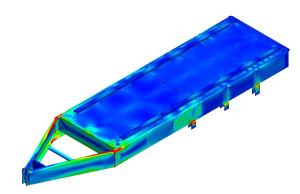

FEA Design Confirmation

Standard Equipment:

Trailer design per GVWR (Gen-Set, Tank, Trailer, Cargo)

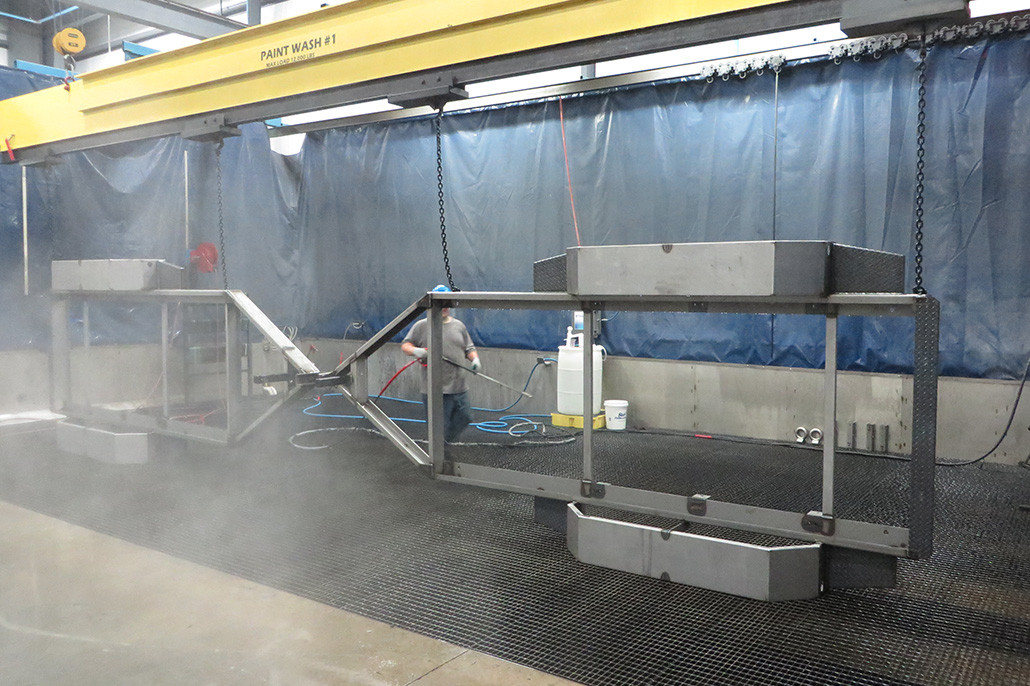

Powder Coating – Black
C-Channel Design
Load bearing capabilities to 24,000 lbs.
Brakes – Electric
Electric break-away kit
Safety chains
Single or dual axle variations

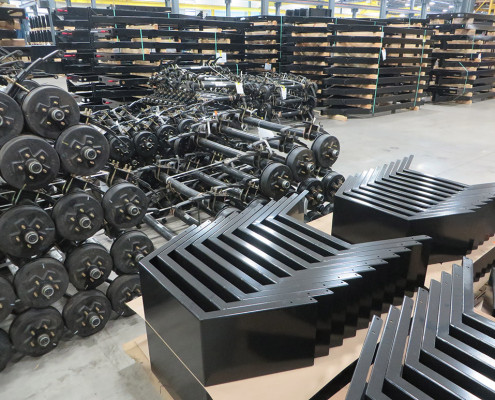

Torflex torsion or slipper spring axles
Radial tires

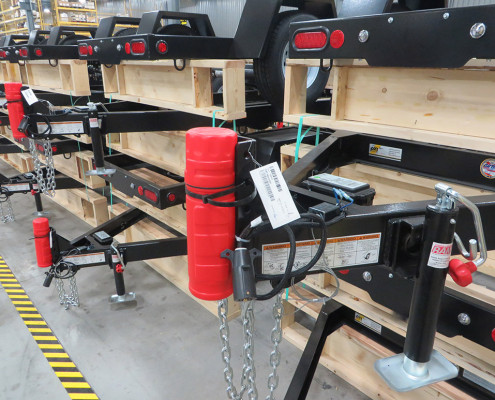

Jacks, tongue and rear stabilizers
Ball couplers; 2”, 2-15/16”
Pintle eye; 3”
Combination ball
ICC/DOT lighting packages
DOT fill cap

Option Equipment & Customization:

Fuel tank; single or double
Brakes – Hydraulic
Spare tire wheel assembly
Cable box mounted to tongue
Tool boxes
Fender steps
Controller – Electric Brakes
Special colors
Tri- (3) axles variations
Special [design/production] requirements

Industries Served:

Stand-By Power Generation
Construction
Heavy Equipment
Agriculture
Industrial

Codes & Standards

United Alloy has the engineering expertise to know and meet special regional and local codes.

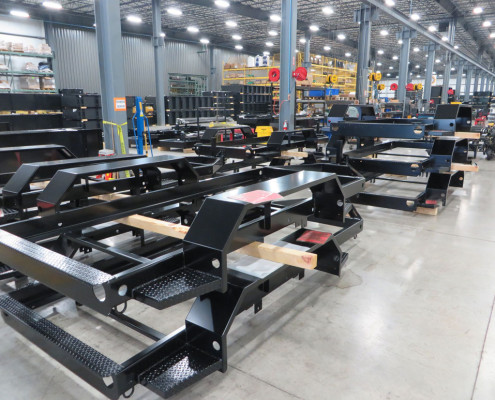

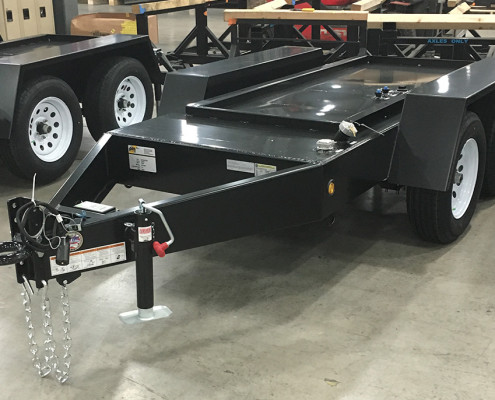

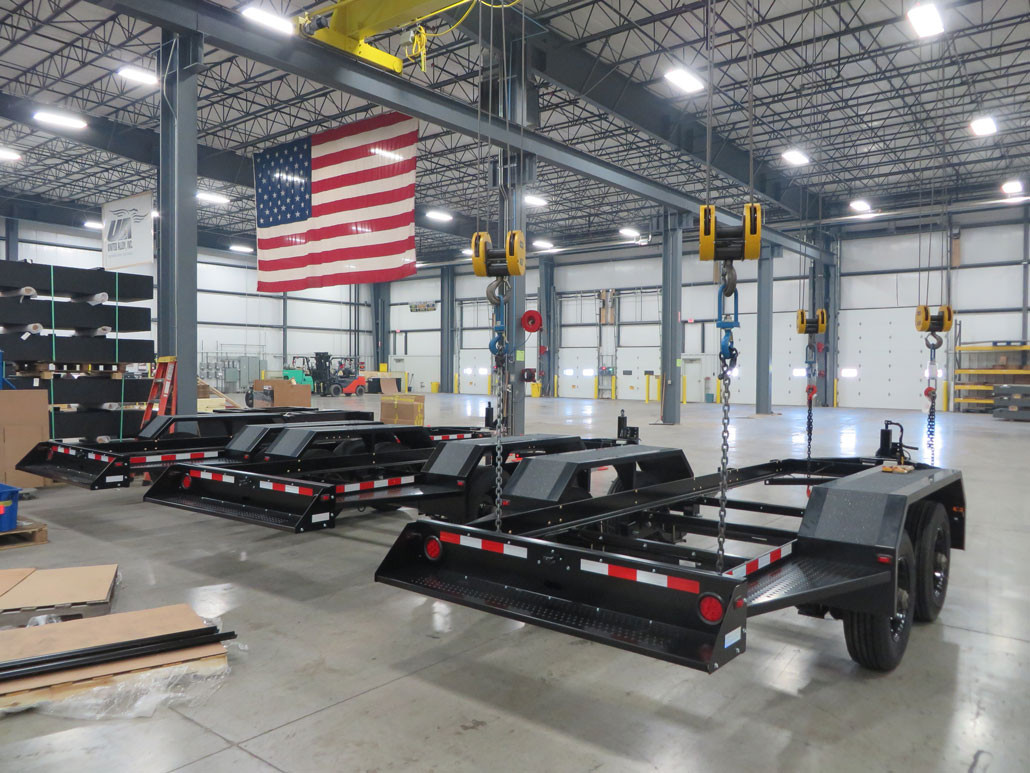

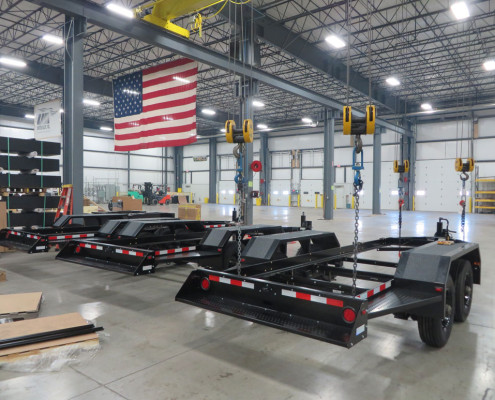

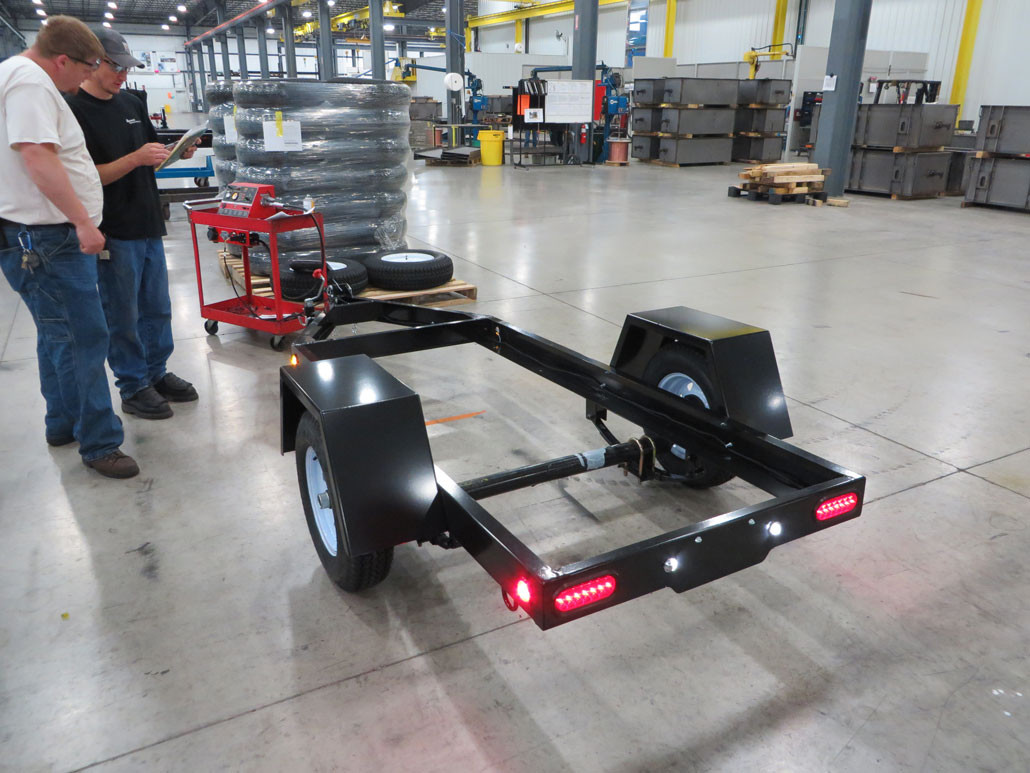

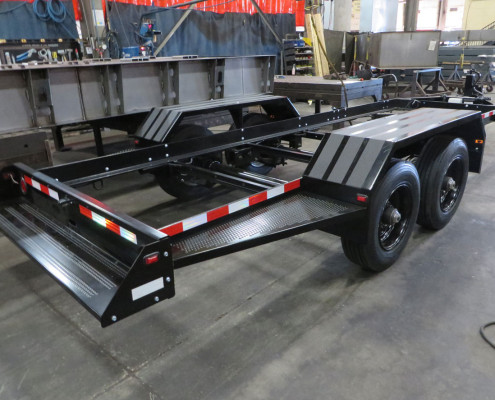

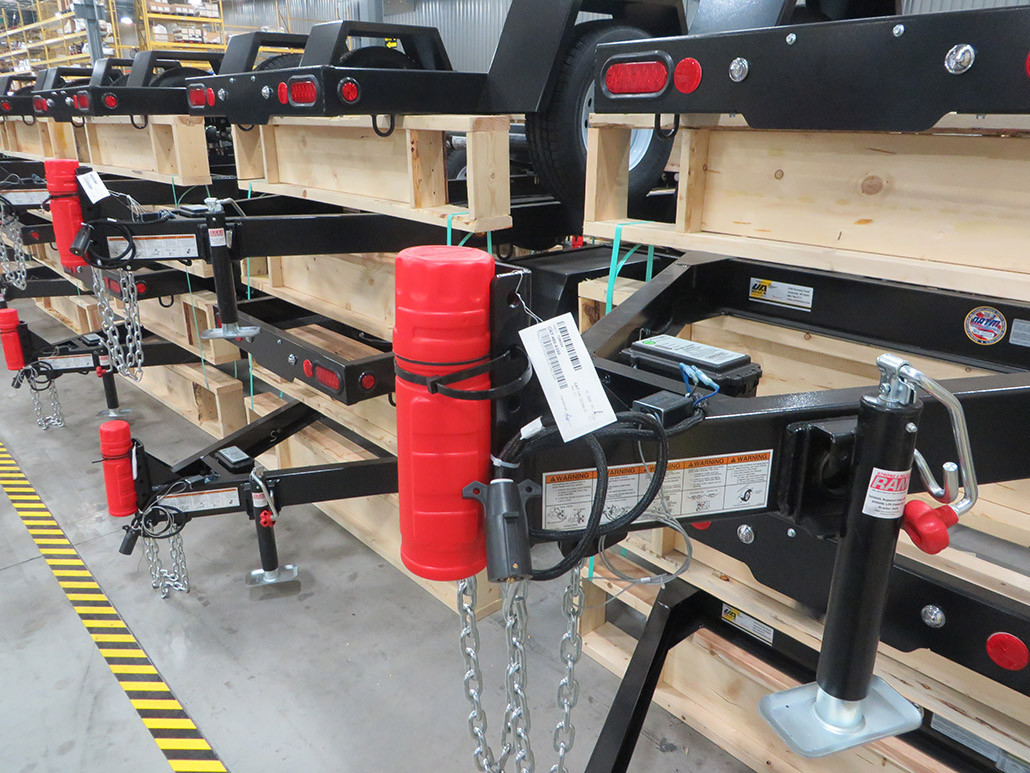

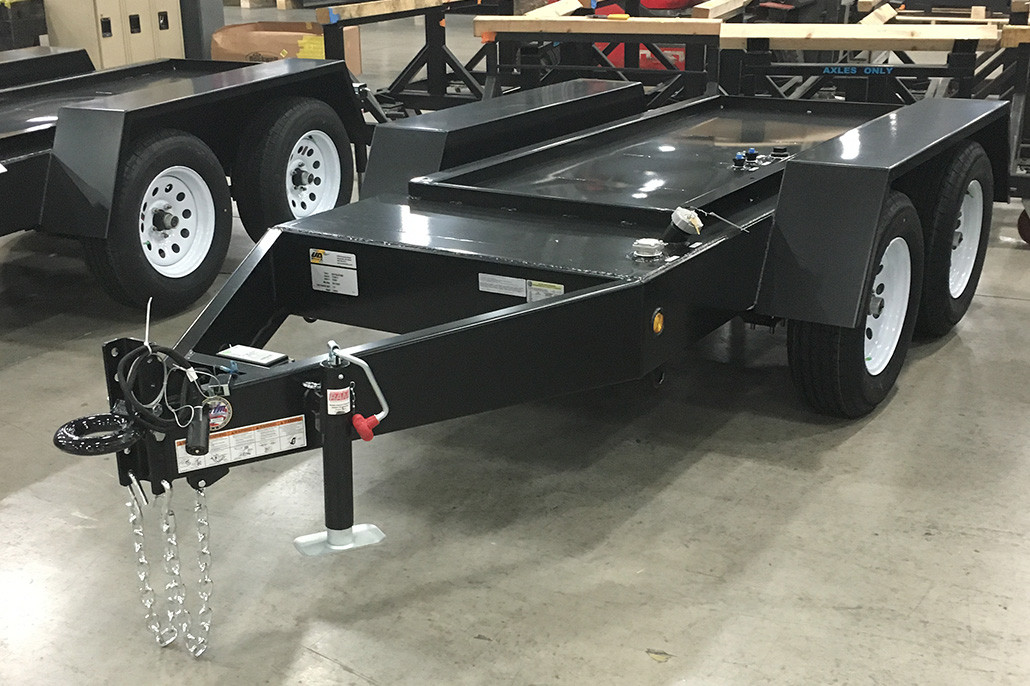

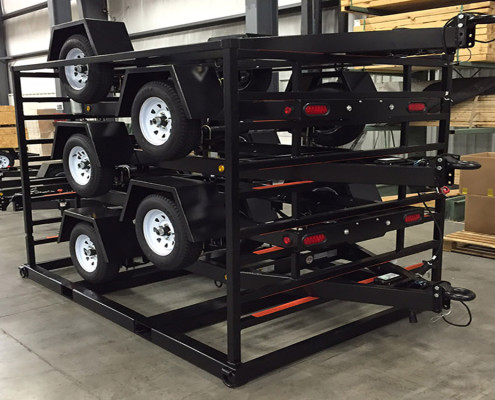

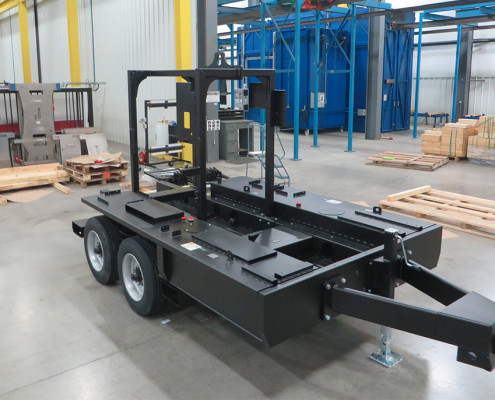

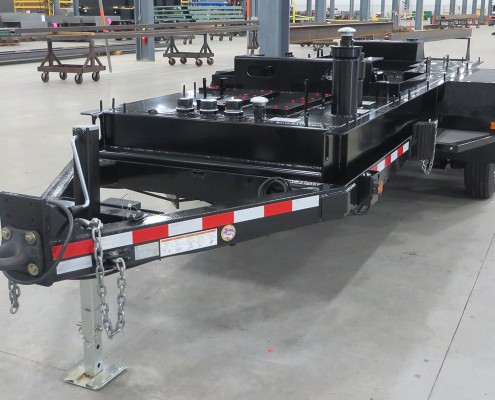

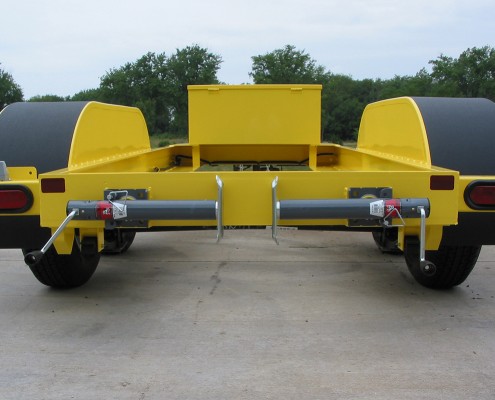

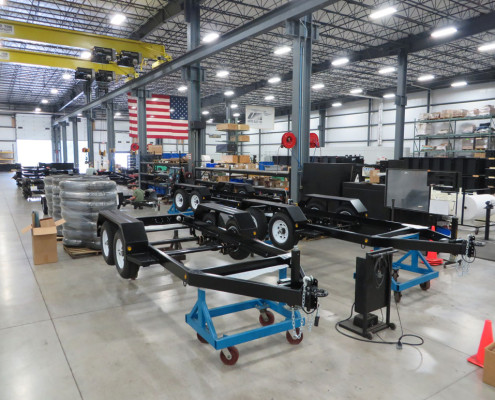

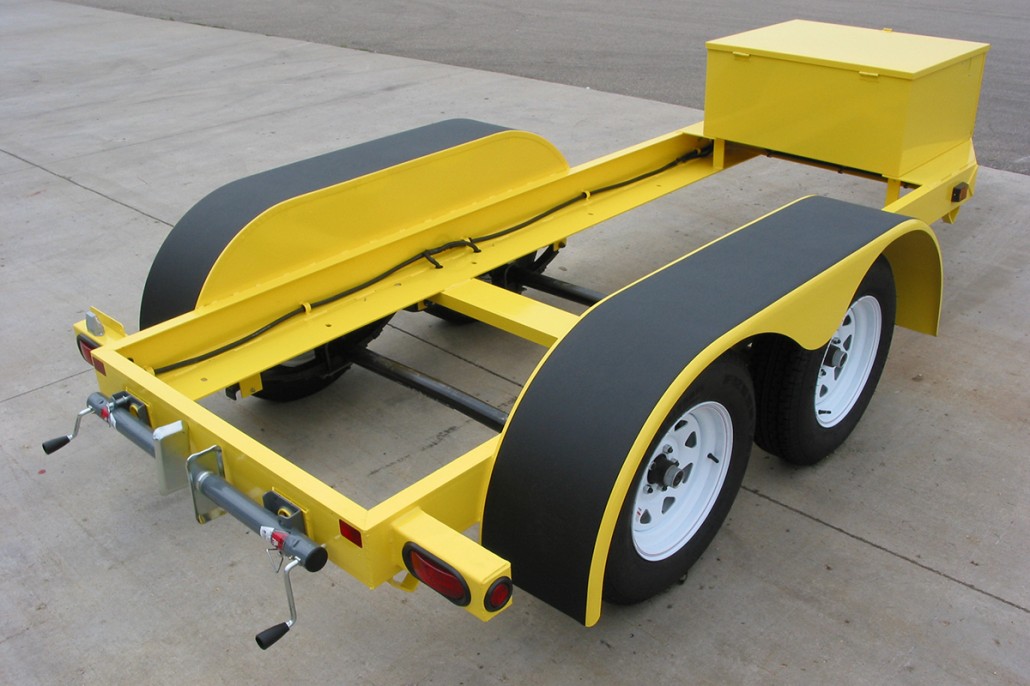

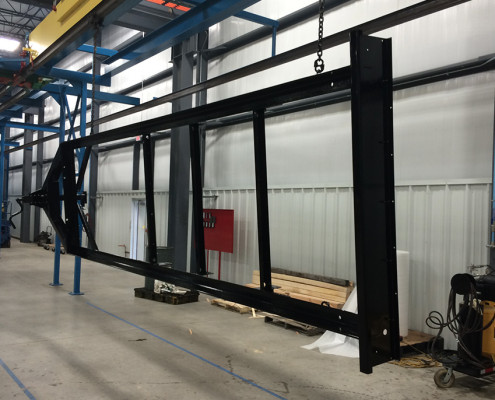

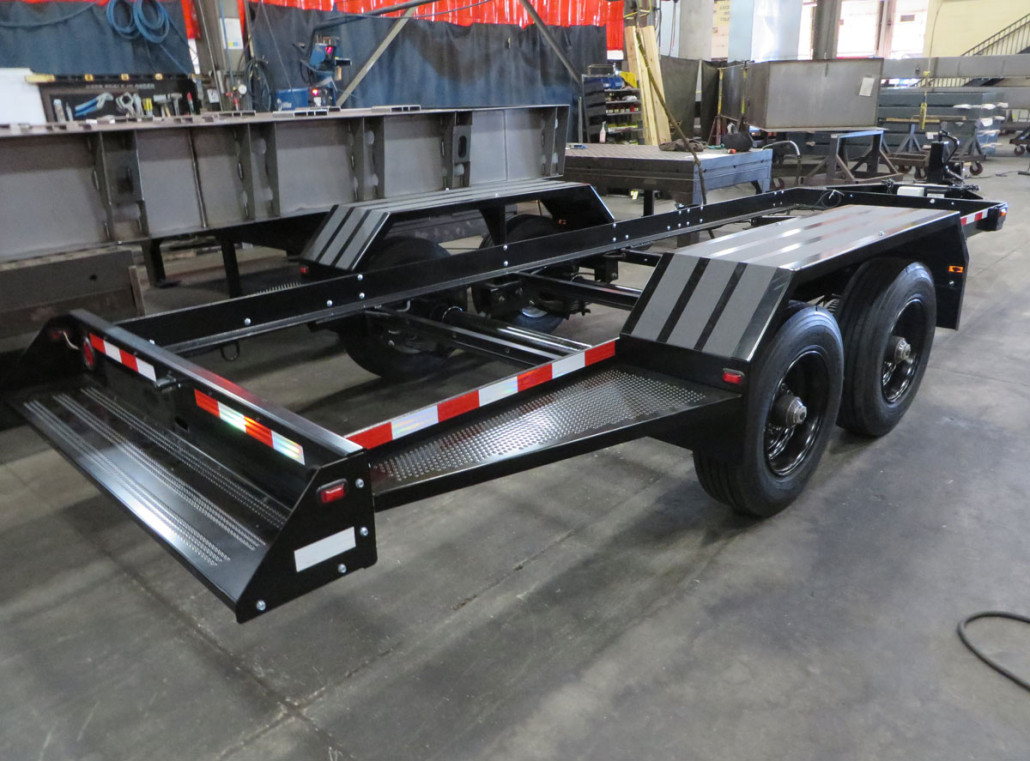

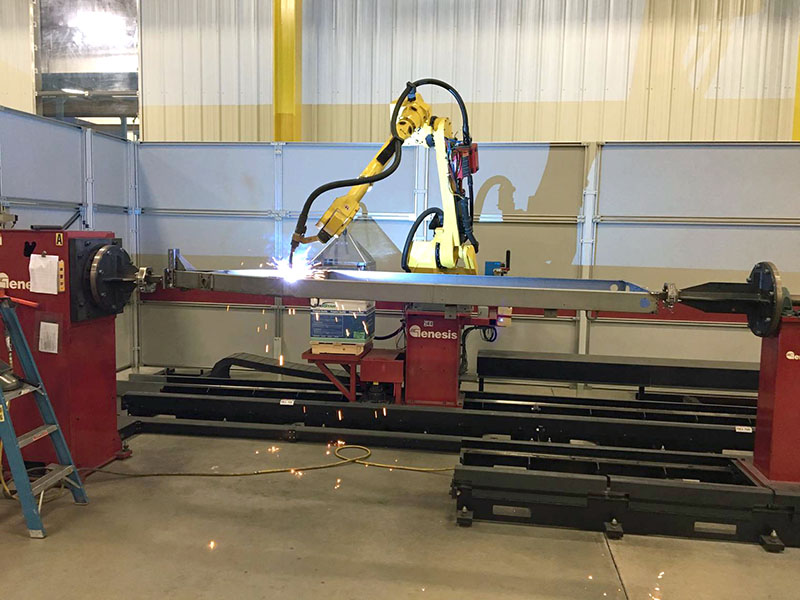

GALLERY

For complete information and details on contract fabrication, call us directly at 608.758.4717 or email us at rfq@unitedalloy.com and we will be happy to fulfill your needs.
